Electronic Parameters
LED Chip : 14 PCS 5W OSRAM P8
Operating Voltage : 10-30V DC
Theoretical Power (W): 70
Actual Power (W): 70
Current Draw (12V) (A): 5.83
Current Draw (24V) (A): 2092
Optical Parameters
Raw Lumen (lm): 8400
Effective Lumen (lm): 2763.5
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 850
Emitting Color : White
Structure
Color Temperature : 5700K
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Die-Cast Aluminium Alloy
Bolt Size : M10
Testing Rate
Operating Temperature : -30℃～+65℃
Waterproof Rating : IP67; IP69K
Compliance/Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R149 (R112)
Function/Highlights
Circuit Function : Reverse Polarity Protection; Surge Protection; Soft Start
Dimensions
Dimensions (L x H x D) (mm): 164.1 x 152.4 x 83 mm
Length (mm): 164.1
Height (mm): 152.4
Depth (mm): 83
Height Including Bracket (mm): 168.29

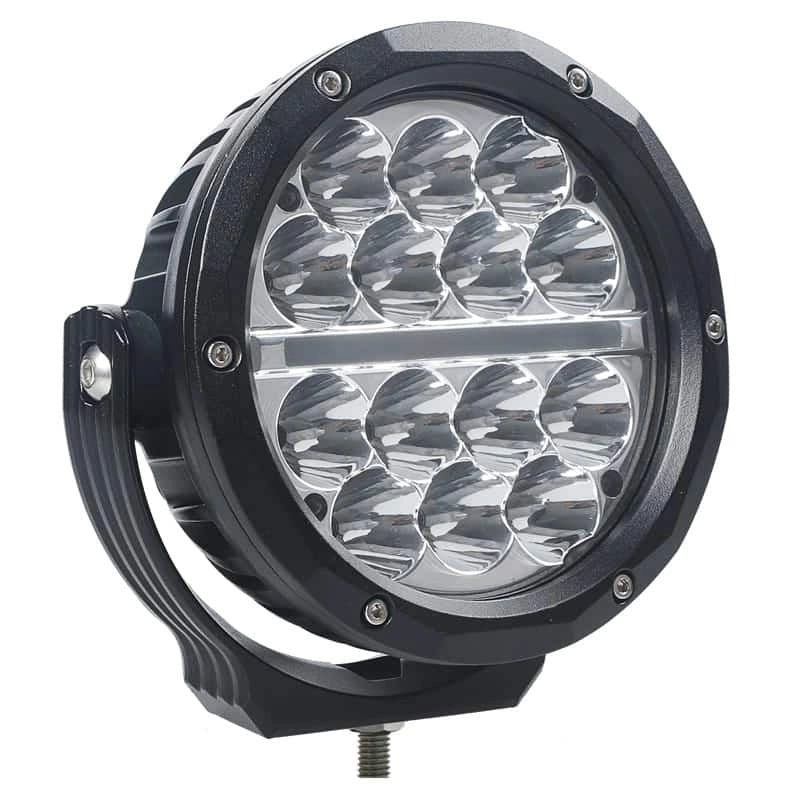

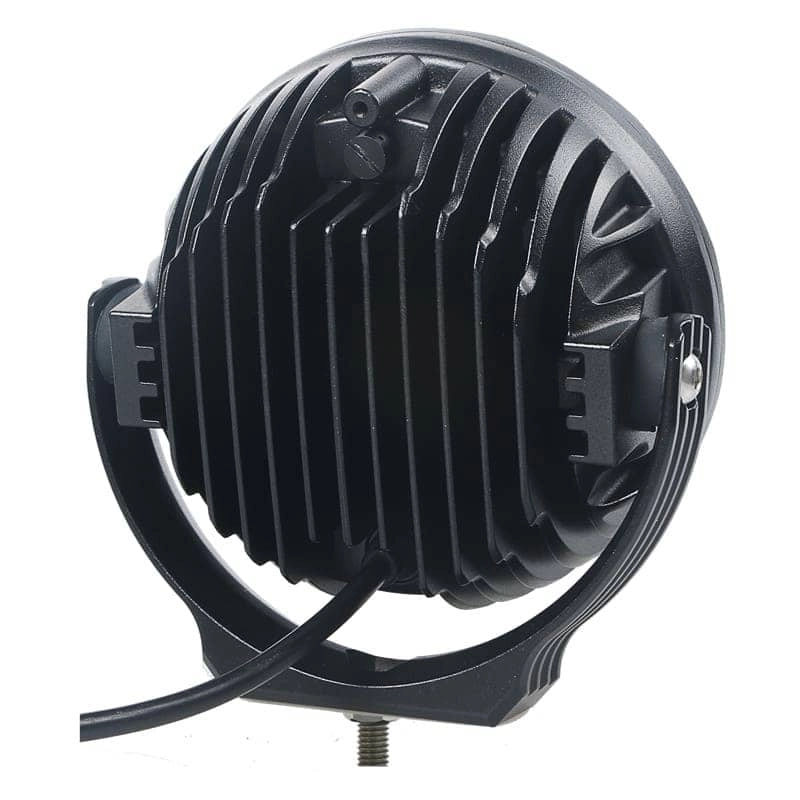

6 Inch ECE R112 Approval Round Osram LED Driving Light SpotLight with White Position Light T6342PE
