Electronic Parameters
LED Chip : 16 PCS 3W OSRAM CSHP
Operating Voltage : 10-30V DC
Theoretical Power (W): 48
Actual Power (W): 41.88
Current Draw (12V) (A): 3.49
Current Draw (24V) (A): 1.75
Optical Parameters
Raw Lumen (lm): 6720
Effective Lumen (lm): 3446
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 1137
Emitting Color : White
Color Temperature : 5700K
Structure
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Die-Cast Aluminium Alloy
Testing Rate
Operating Temperature : -30℃～+65℃
Waterproof Rating : IP67; IP68; IP69K
Compliance/Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R148 (R7); ECE R149 (R112)
Function/Highlights
Circuit Function : Temperature Control System (TCS); Surge Protection; Reverse Polarity Protection; Soft Start
Highlights :
Bezel-less & Screw-less unique design

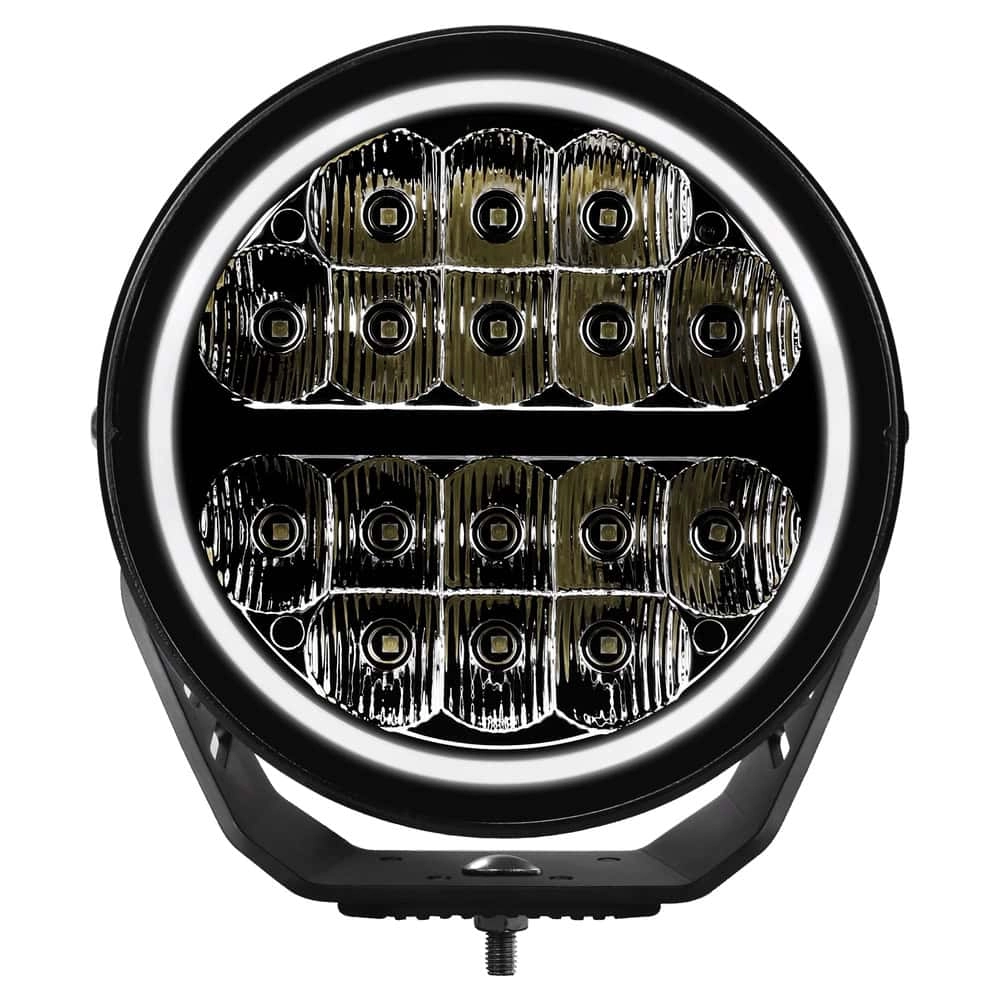

Angel eye position light with ECE R7
With TCS
Dimensions
Dimensions (L x H x D) (mm): 191.9 x 178 x 78.2 mm
Length (mm): 191.9
Height (mm): 178
Depth (mm): 78.2
Height Including Bracket (mm): 194.7
