Electronic Parameters
LED Chip : 16 PCS 5W OSRAM P8
Operating Voltage : 10-30V DC
Theoretical Power (W): 90
Actual Power (W): 48
Current Draw (12V) (A): 4.011
Current Draw (24V) (A): 1.98
Optical Parameters
Raw Lumen (lm): 10800
Effective Lumen (lm): 4495.2
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 870
Emitting Color : White
Color Temperature : 5700K
Structure
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Die-Cast Aluminium Alloy
Bolt Size : M10
Testing Rate
Operating Temperature : -30℃～+65℃
Waterproof Rating : IP67; IP69K
Compliance/Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R149 (R112)
Function/Highlights
Circuit Function : Reverse Polarity Protection; Surge Protection; Soft Start
Highlights :
Dimensions
Dimensions (L x H x D) (mm): 186.92 x 177.8 x 77.96 mm
Length (mm): 186.92
Height (mm): 177.8
Depth (mm): 77.96
Height Including Bracket (mm): 192.8

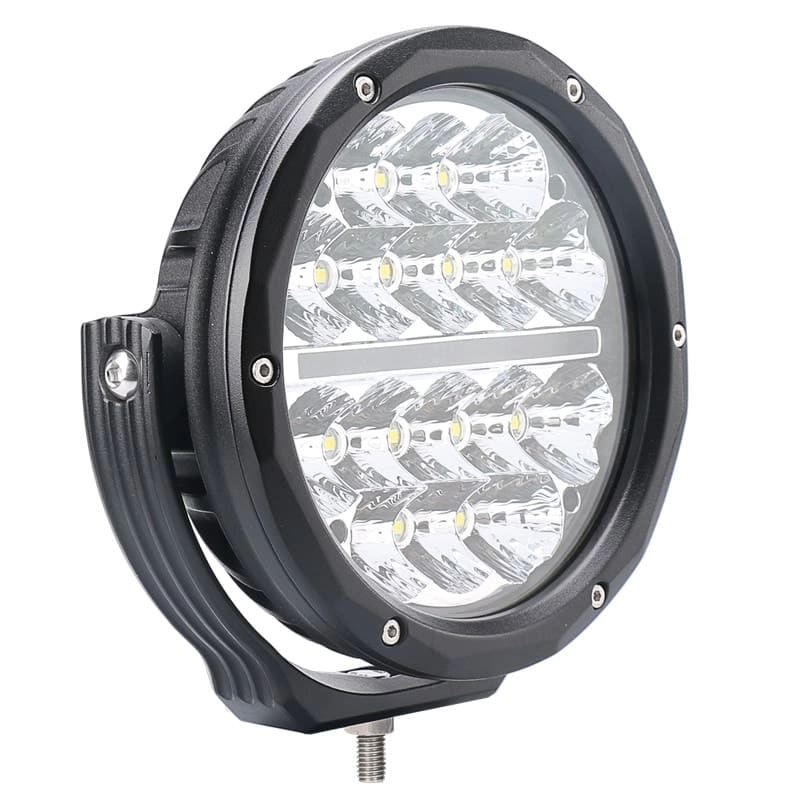

7 Inch ECE R112 Approval Round Osram LED Driving Light SpotLight with White Position Light T5948E
Discover the Totron 7-Inch ECE R112 Approved Osram LED Driving Light T5948E. This high-performance round LED driving light features a powerful spotlight beam and stylish white position light, ensuring safer, brighter journeys for your vehicle in any condition.
3 Inch Square Mini 5W High-Efficiency Output LED Work Light T8005
The Totron 3-Inch Square Mini 5W High-Efficiency Output LED Work Light T8005 delivers powerful illumination in compact form. Ideal for vehicles and industrial use, this LED work light ensures durability, low power consumption, and superior performance for all your lighting needs.
4 Inch Square High-Efficiency Output Osram LED Work Light T5148
Enhance visibility with the Totron 4-Inch Square High-Efficiency Output Osram LED Work Light T5148. Built for durability, this heavy-duty LED work light delivers superior brightness and performance for demanding job sites and off-road applications.
4.4 x 2.4 Inch Rectangle LED Work Light T5318
Discover the Totron 4.4 x 2.4 Inch Rectangle LED Work Light T5318—engineered for durability and high brightness. This LED work light is ideal for trucks, off-road vehicles, and construction sites, delivering reliable performance in any environment.
5 x 4.4 Inch Rectangular Heavy Duty LED Work Light T74180SP
The Totron 5 x 4.4 Inch Rectangular Heavy Duty LED Work Light T74180SP delivers superior illumination and durability for demanding work sites. This heavy-duty LED work light is ideal for trucks, construction, and off-road applications.
