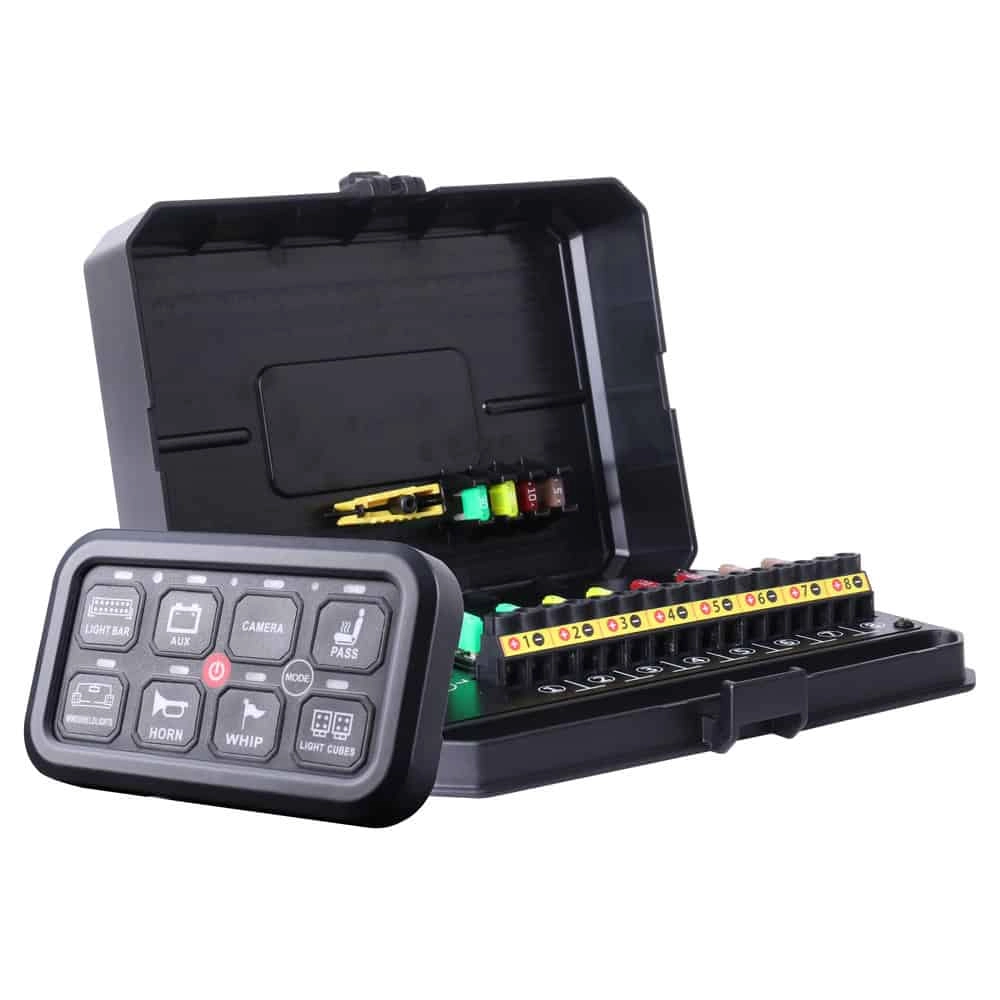

8-Gang Switch Panel Power Management and Relay Circuit Control System With Programmable Button and Dimmable RGB Backlighting Control Panel, Bluetooth and RF433 Wireless Control Option
An 8-gang switch panel is a must-have for your vehicle, particularly if you partake in off-road activities, night riding, hunting, or any outdoor adventures. The Totron 8-gang switch panel, for instance, provides convenience and efficiency in managing various electrical components in your vehicle. Its push-button and momentary switch design allows for easy control of light bars, driving lights, and other accessories with a simple touch. Its sturdy construction ensures durability and reliability, even in harsh environments. Upgrade your vehicle with the 8-gang switch panel and enjoy enhanced control and safety on your thrilling journey.
Product Features:
Input voltage: 12V/24VDC.
Maximum output power: 600 W at 12 V, 1200 W at 24 V.
Maximum input current: 60A

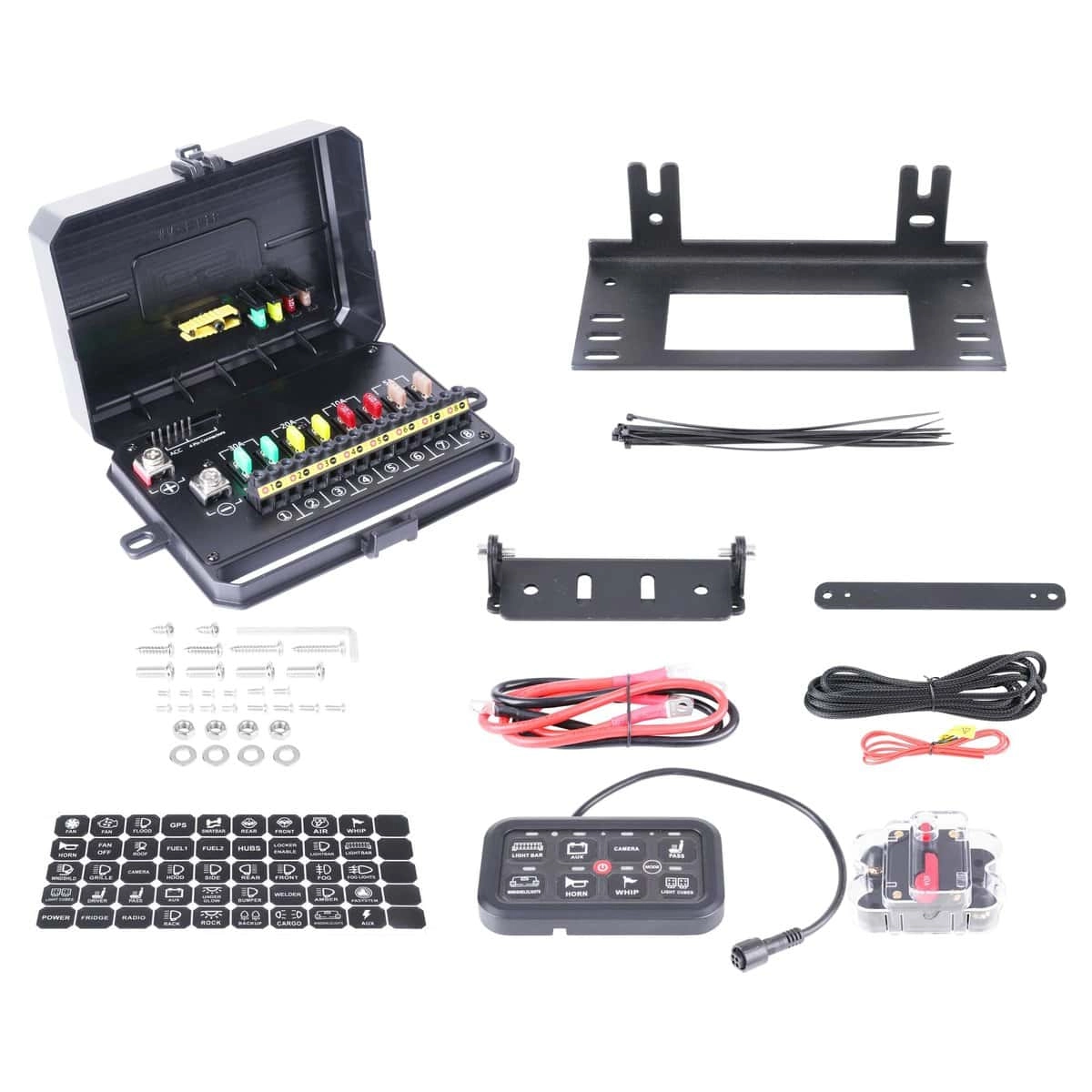

Universal mounting brackets
Controls up to 8 LED lights or other electronic devices
4 Control box back-up fuses
RGB Color changeable LED backlight
Dimmable backlighting capabilities
Red/green/Blue LED indicator lights
50 pcs reusable switch labels
Overvoltage protection, overcurrent protection.
Reverse polarity protection and thermal protection
Switch panel material: high-quality ABS and aluminum.
Operating temperature: -40°C ~ +105°C

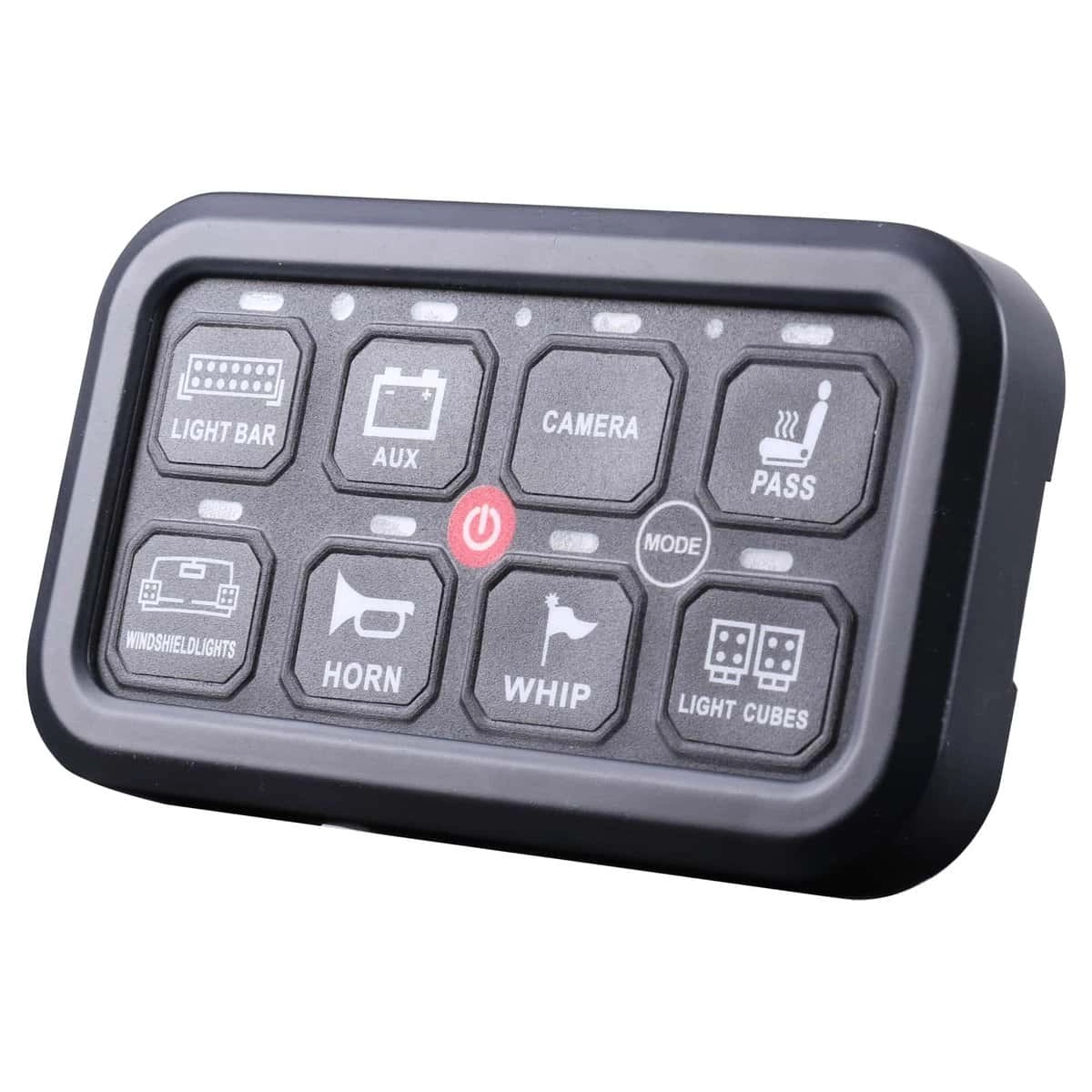

Switch Panel: 115*66*14mm

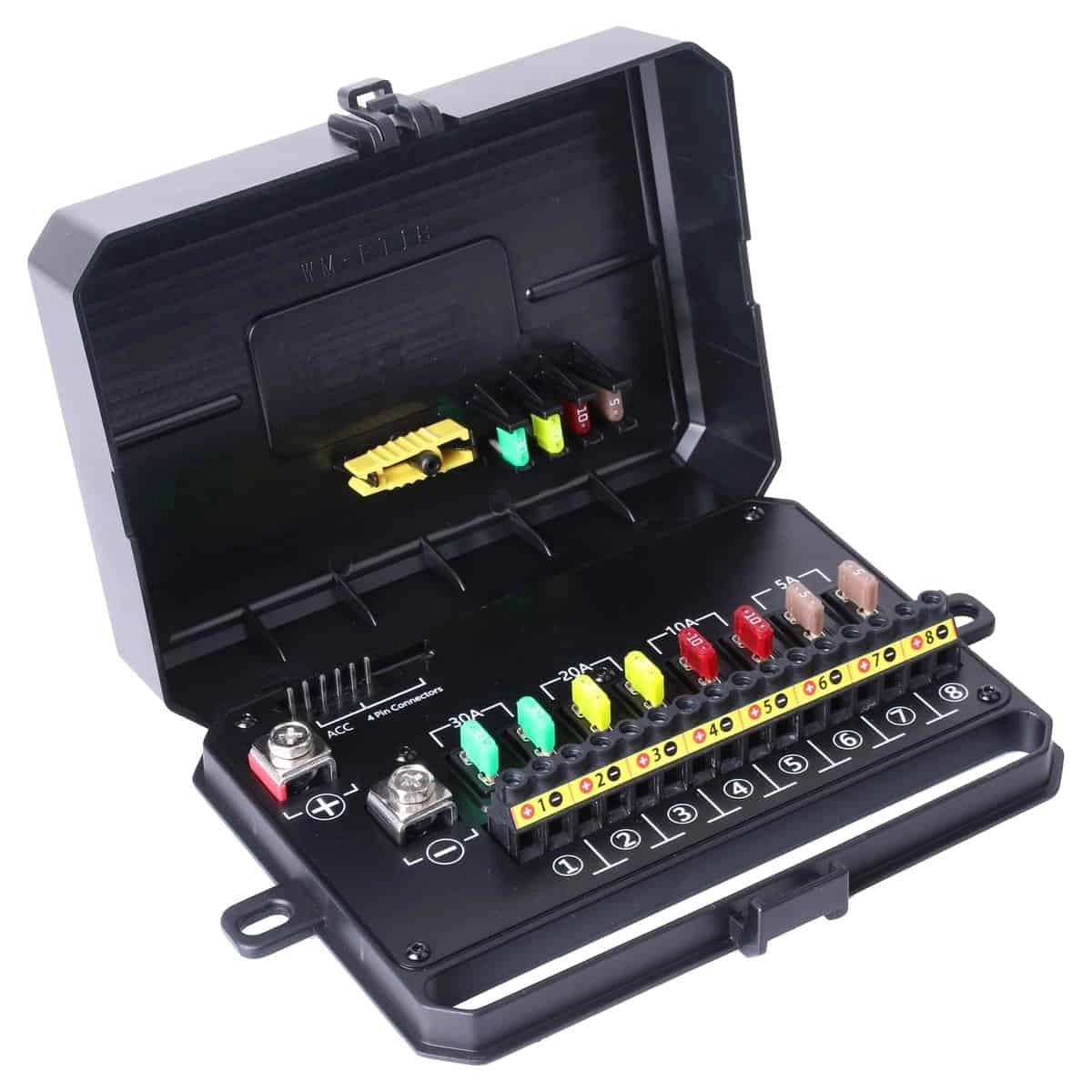

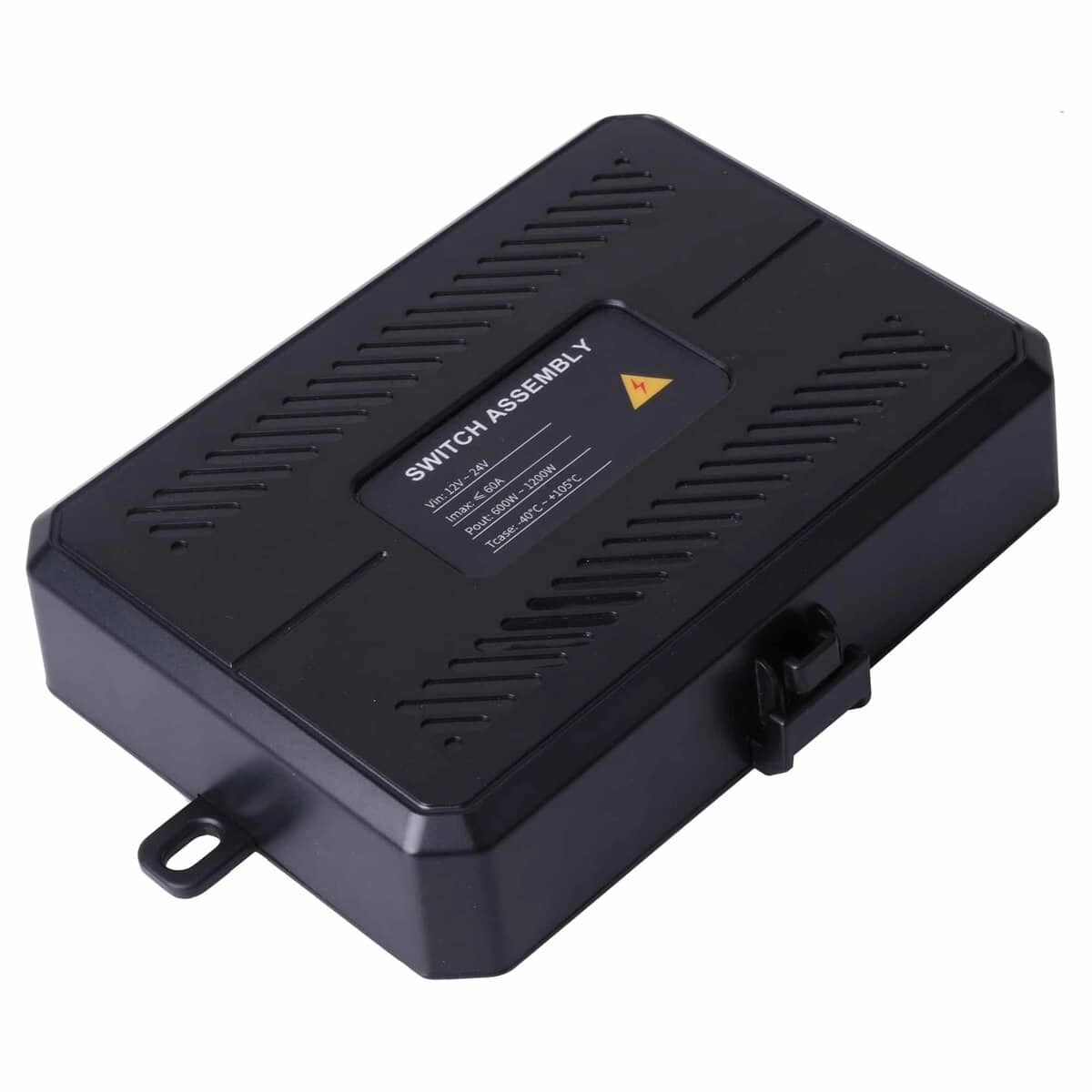

Circuit Control Box: 174*125*37mm
Optional Bluetooth/RF Remote module
Model List:
TWB-0308: Basic Model
TWB-0308BT: Basic Model + Bluetooth
TWB-0308RF: Basic Model + RF Remote
TWB-0308BTRF: Basic Model + Bluetooth + RF Remote
