Electronic Parameters
LED Chip : 34 PCS 3W OSRAM CSHP
Operating Voltage : 10-30V DC
Theoretical Power (W): 102
Actual Power (W): 99.84
Current Draw (12V) (A): 8.32
Current Draw (24V) (A): 4.06
Optical Parameters
Raw Lumen (lm): 14280
Effective Lumen (lm): 7935
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 1577
Emitting Color : White
Color Temperature : 5700K
Structure
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Stainless Steel 304
Testing Rate
Operating Temperature : -30℃～+65℃
Waterproof Rating : IP67; IP68; IP69K
Compliance/Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R148 (R7); ECE R149 (R112)
Function/Highlights
Circuit Function : Temperature Control System (TCS); Surge Protection; Reverse Polarity Protection; Soft Start
Highlights :
Bezel-less & Screw-less unique design

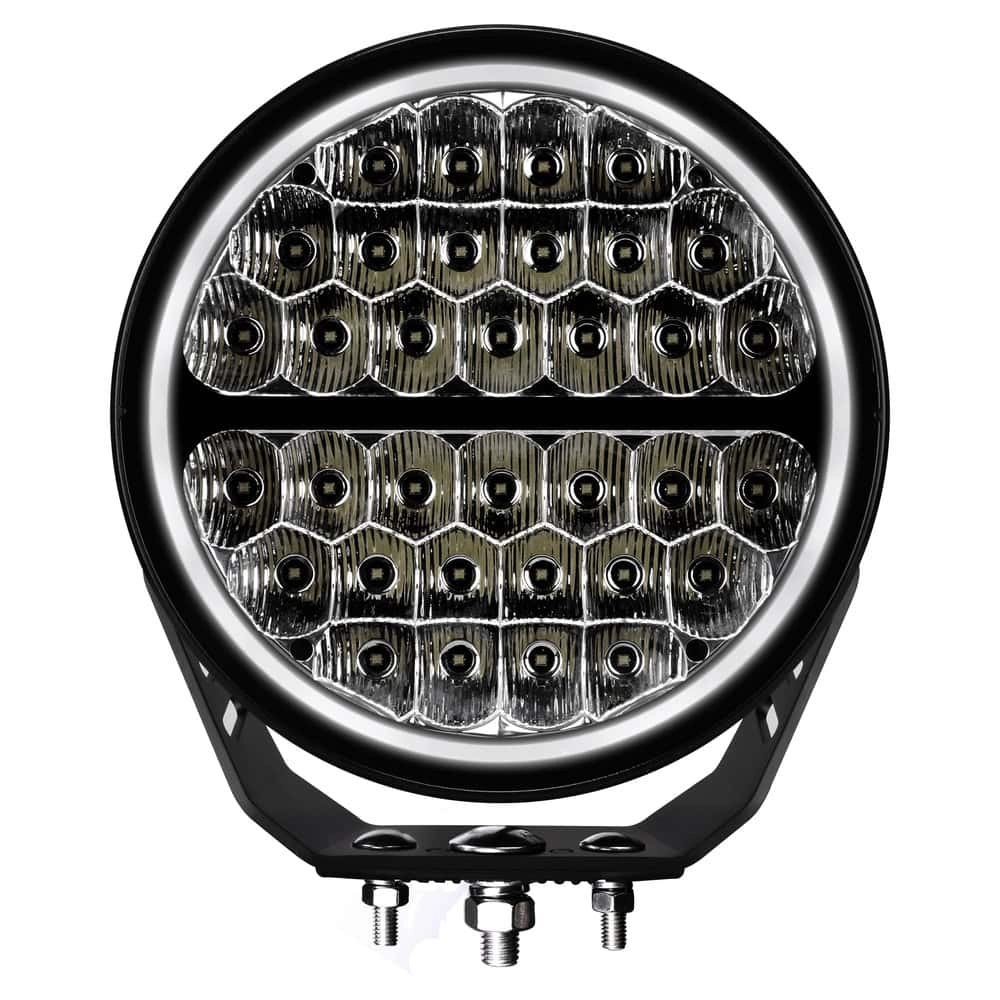

Angel eye position light with ECE R7
With TCS

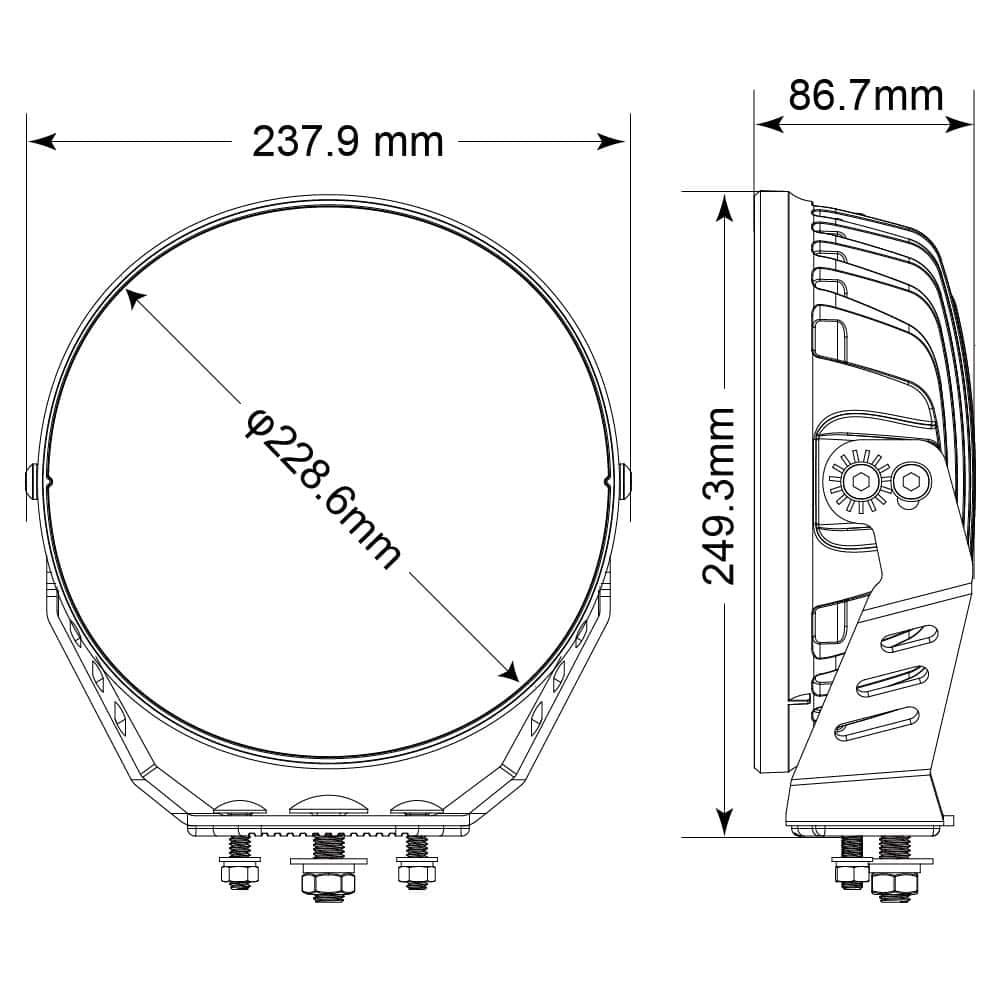

Dimensions
Dimensions (L x H x D) (mm): 237.9 x 228.6 x 86.7 mm
Length (mm): 237.9
Height (mm): 228.6
Depth (mm): 86.7
Height Including Bracket (mm): 249.3
