Electronic Parameters
LED Chip : 34 PCS 5W OSRAM P8
Operating Voltage : 10-30V DC
Theoretical Power (W): 170
Actual Power (W): 94.5
Current Draw (12V) (A): 7.88
Current Draw (24V) (A): 3.92
Optical Parameters
Raw Lumen (lm): 20400
Effective Lumen (lm): 7114.3
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 1350
Emitting Color : White
Color Temperature : 5700K
Structure
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Stainless Steel 304
Bolt Size : M10
Testing Rate
Operating Temperature : -30℃～+65℃
Vibration Rating :
Shock Rating :
Salt Spray Rating :
Waterproof Rating : IP67; IP69K
Compliance/Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R149 (R112)
Function/Highlights
Circuit Function : Reverse Polarity Protection; Surge Protection; Soft Start

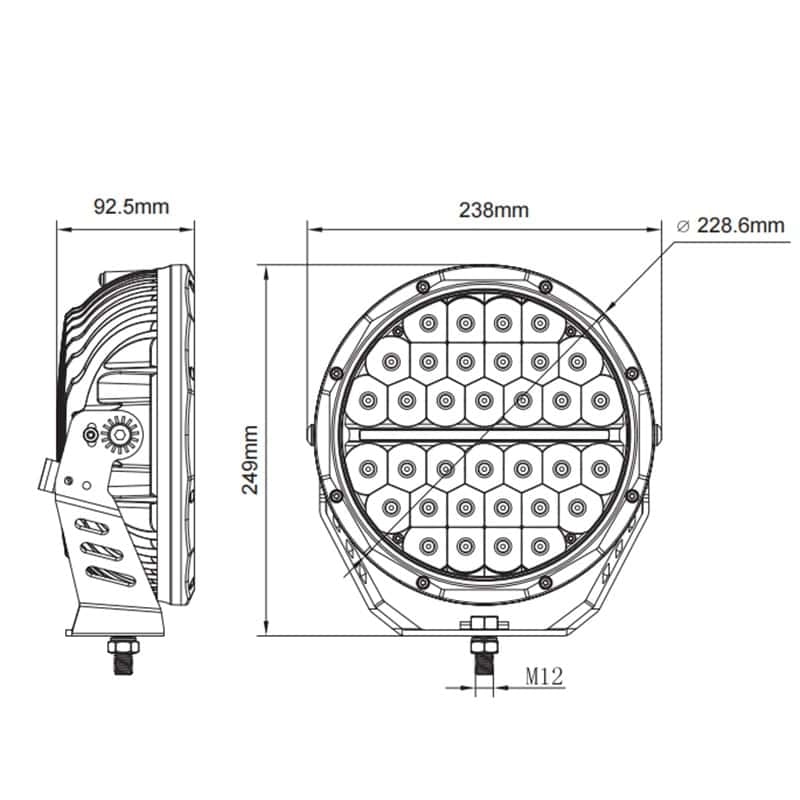

Dimensions
Dimensions (L x H x D) (mm): 238.03 x 228.6 x 92.48 mm
Length (mm): 238.03
Height (mm): 228.6
Depth (mm): 92.48
Height Including Bracket (mm): 249.34

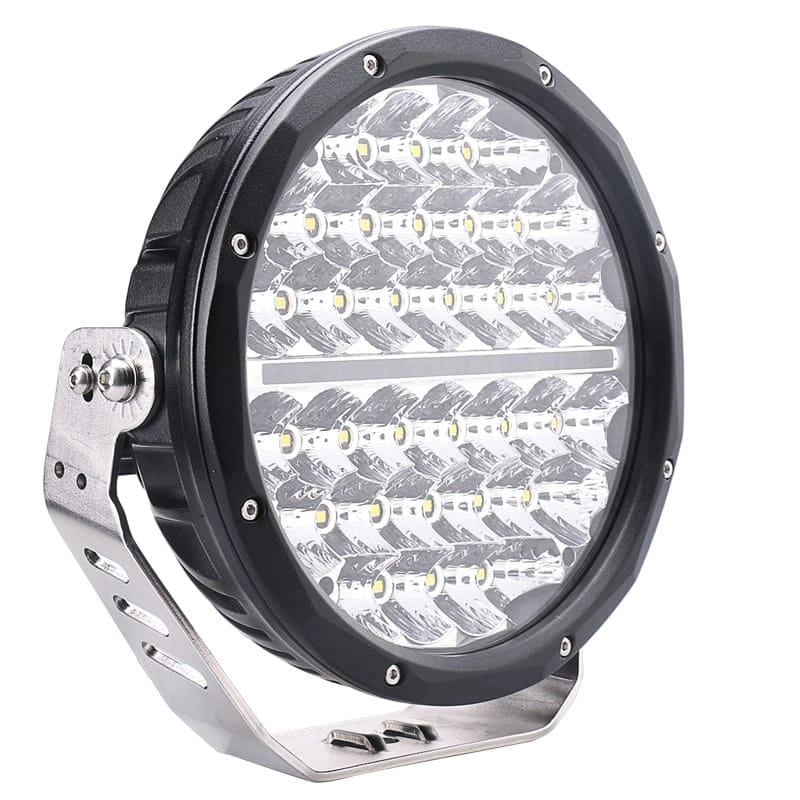

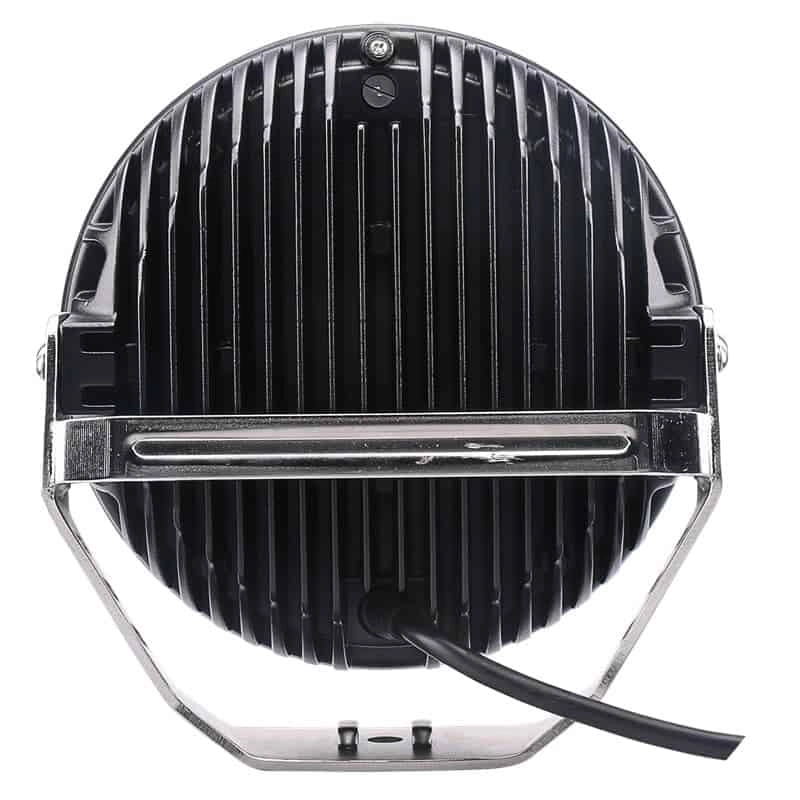

9 Inch ECE R112 Approval Round Osram LED Driving Light Spot Light with White Position Light T62102PE
Discover the Totron 9-Inch ECE R112 Approved Round Osram LED Driving Light T62102PE. Featuring a powerful white position light, this LED driving light delivers exceptional visibility and durability for enhanced driving safety. Perfect for all road conditions.
