. LED Chip: 20 pcs*5W OSRAM LED
. Raw Power: 100W
. Actual Power: 47-67W
. Raw Lumen: 11000 lm
. Effective Lumen: 4800-7450 lm
. Operating Voltage: 9-36VDC (with surge Protection)
. Current Draw: 12V/4.19A; 24V/1.95A
. Beam Pattern: Flood
. Color Temperature: 5000K

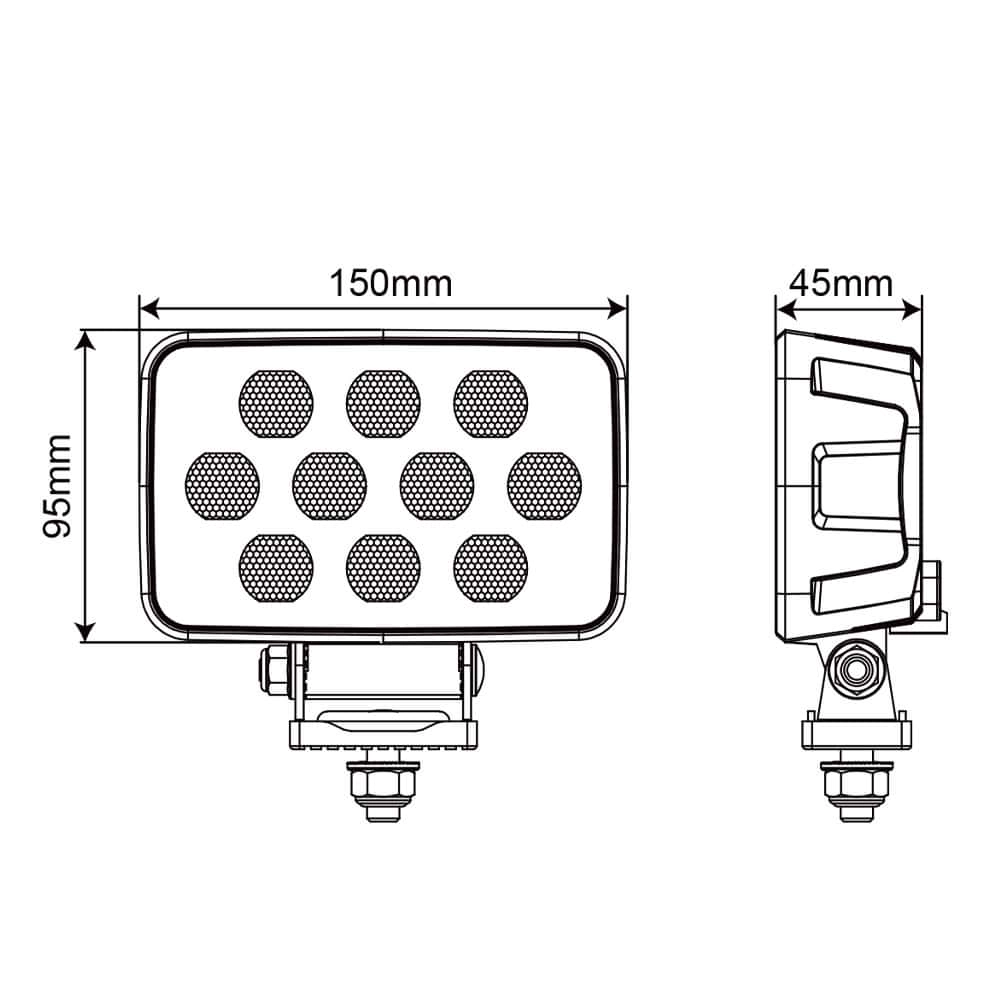

. Dimensions:″ (150*95*45mm)
. Lens material: PC
. Mounting Bracket: Stainless Steel Bracket, Single Bolt M10
. Certificates: CE/RoHS/IP68/IP69K/R10/CISPR25 C3
. Vibration: 15 , 3 axis
. Shock: 60G
. Salt Spray: NSS hours
. Protected against reverse voltage
. Built-in DT connector, with male DT connector with wire
Bezel-less design to prevent accumulation of mud, snow and water.
Specially designed optics, wide flood, and even light distribution.
5000K & 5700K 2 color temperature options.
With the internal automatic temperature control system (TCS), maximize the performance at the right temperature, avoid overheating, and extend the lifespan of the light.
Compact size and universal shape.
Premium powder coating, corrosion, UV and chemical resistance, NSS 500H.
Unique cap breather to prevent moisture and fog inside the lamp.

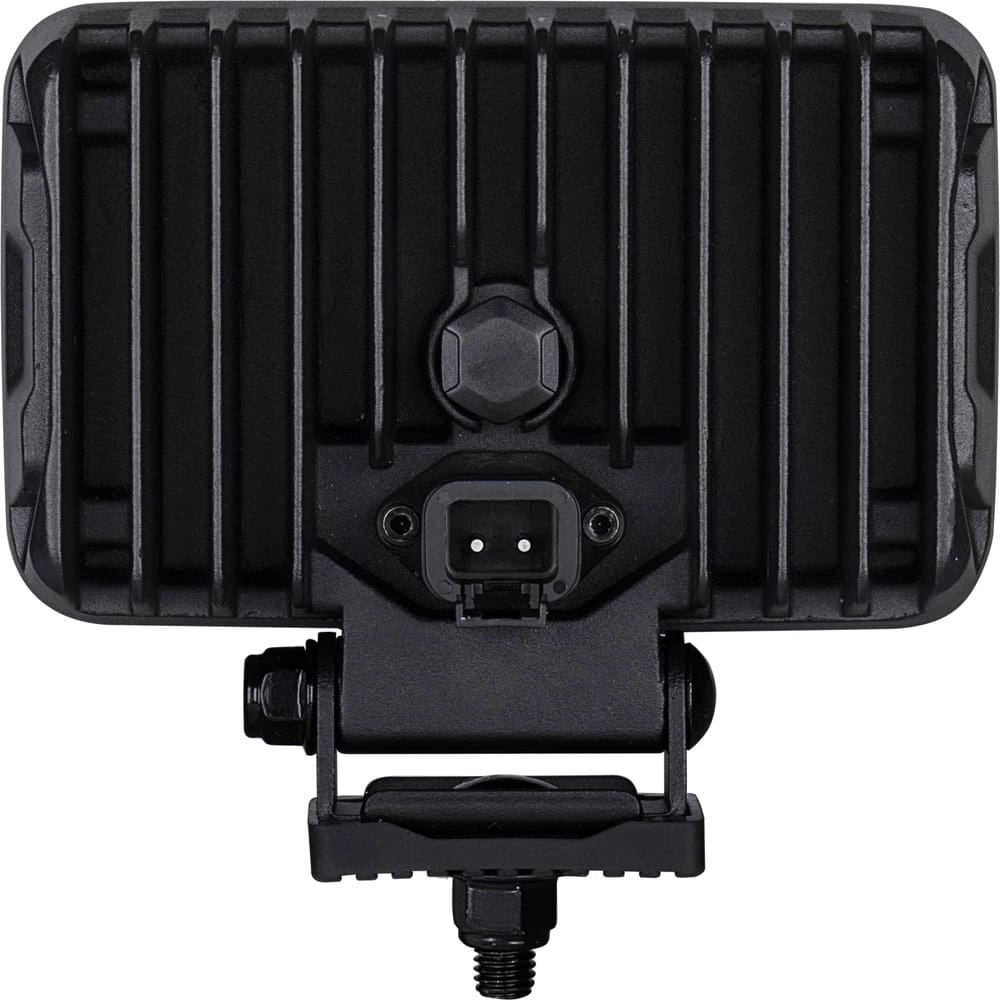

Built-in DT2 pin connector for easy installation.
Stainless steel bracket with lock nut to ensure OE standard durability, meets 15G vibration 3 axes, 60G shock.
