Certifications and Standards:
DOT, SAE, and EMARK certifications ensure compliance with international safety and performance standards.
Versatile Lighting Integration:

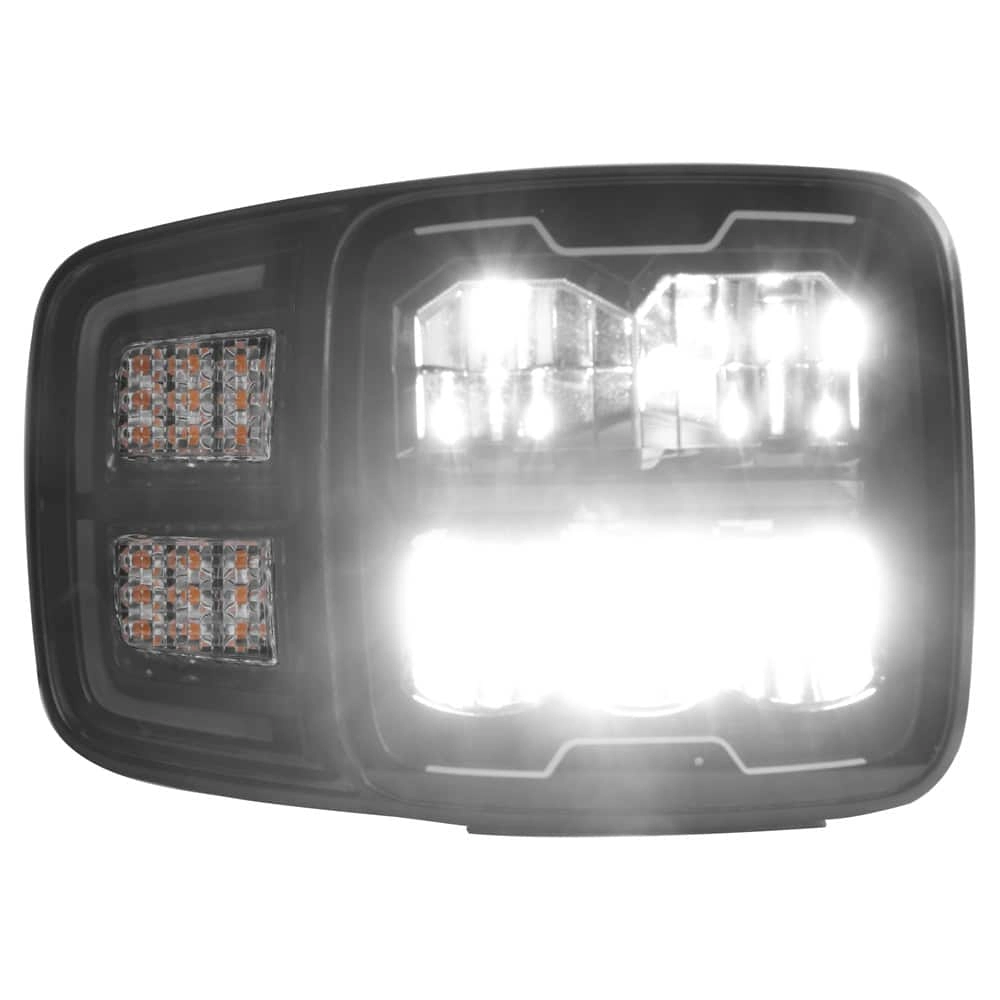

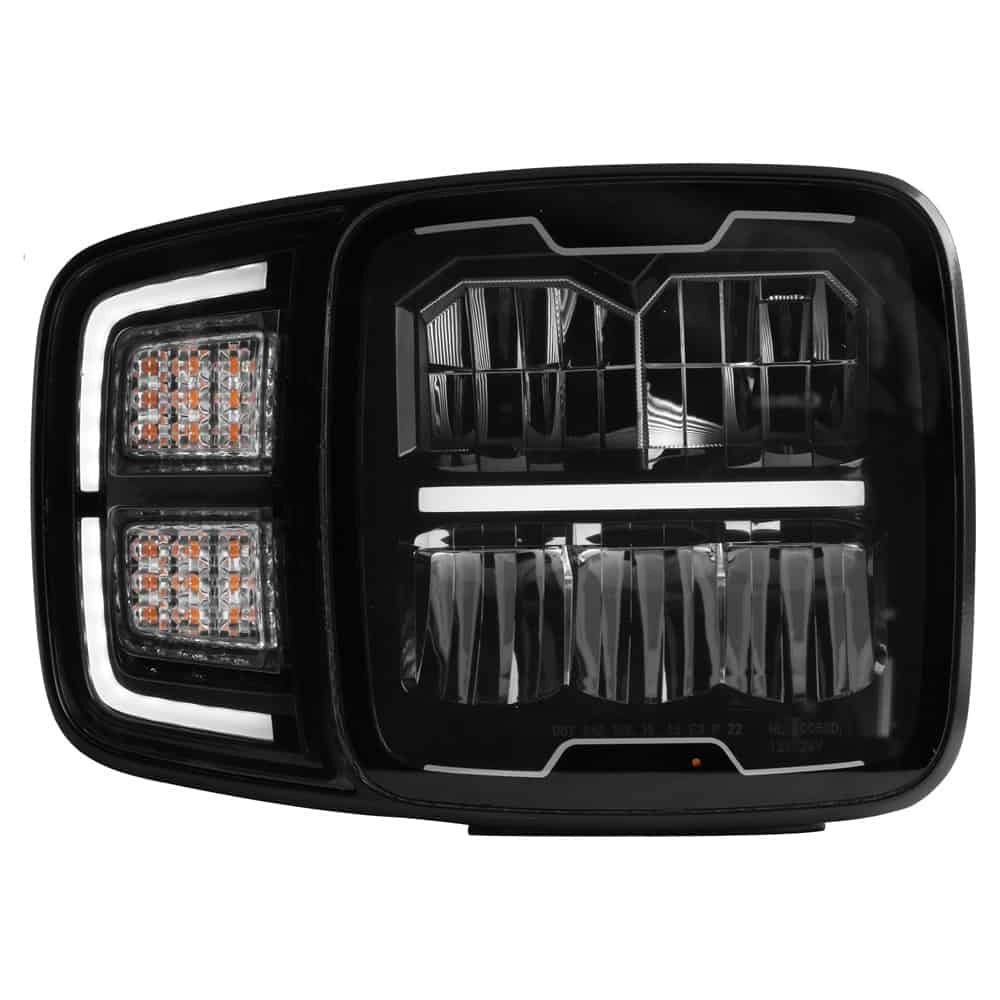

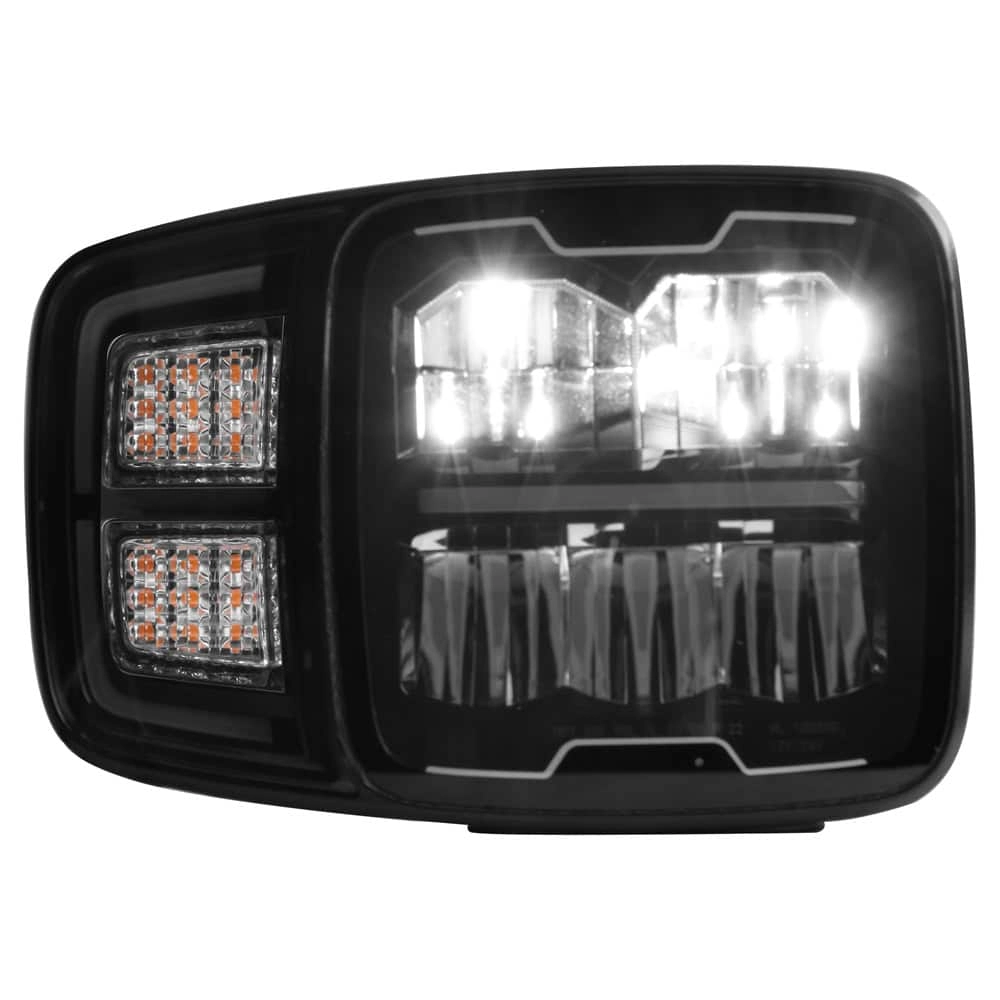

Designed with an integrated high/low beam, position, and turn signal light system, providing a comprehensive lighting solution for various vehicles.

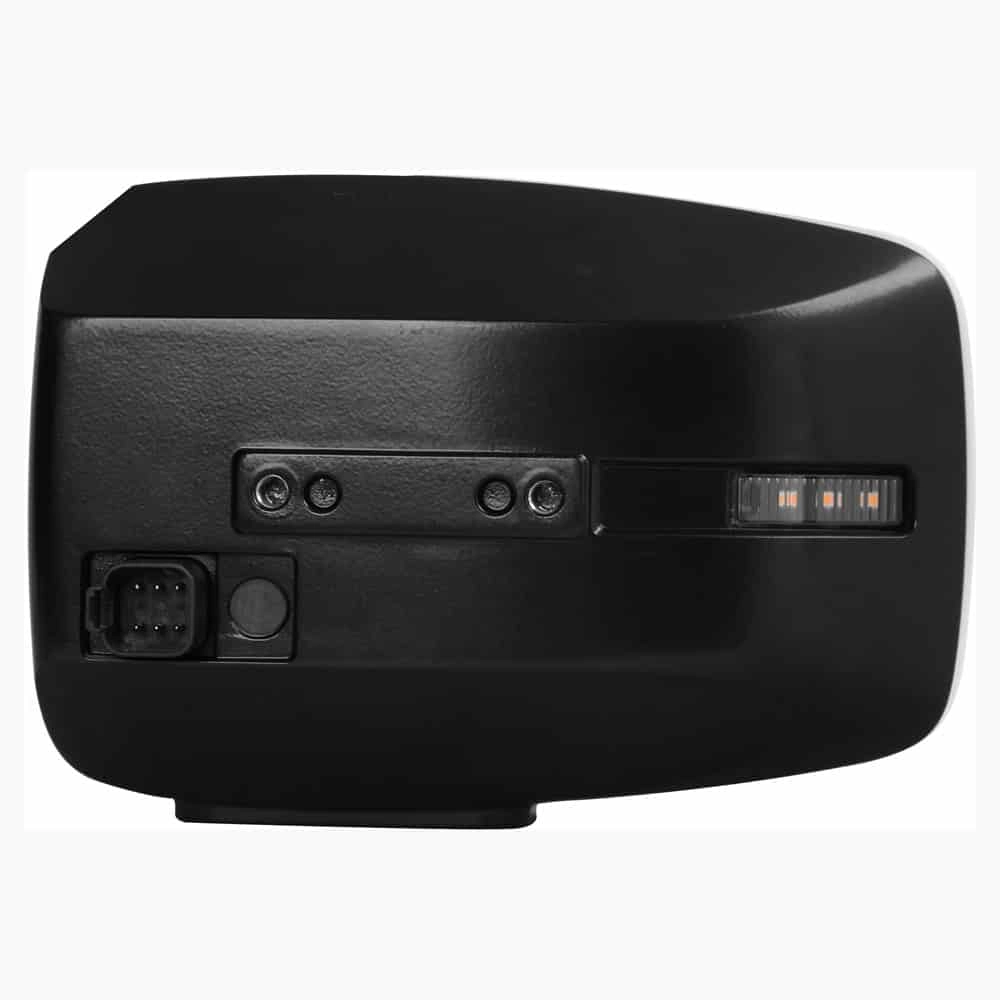

Mounting Options:
Offers both bottom and rear mounting capabilities, ensuring wide applicability across different vehicle types.
Advanced Lens Technology:
Equipped with a heated glass lens for automatic snow melting, making it ideal for use in harsh winter conditions on snowplows, pickups, SUVs, ATVs, and heavy-duty machinery.
Durable Lens Protection:
Features a hard-coated PC lens that resists scratches, ensuring long-lasting clarity and performance.
Streamlined Design:
A bezel-less and screw-less frame design reduces the accumulation of dirt, snow, and ice, maintaining optimal visibility and functionality.
Efficient Wiring:
A 5-core cable system simplifies installation and enhances reliability.
Functional Specifications and Compliance:
Low Beam: Meets R149/DOT/SAE standards for low beam functionality.
High Beam: Meets R149/DOT/SAE standards for high beam functionality.
Position Light: Adheres to R148 standards for position lighting.
Turn Signal Light: Complies with R148 standards for turn signal functionality.
Technical Parameters:
High Beam:
LED Chip: 3 x 10W CREE
Effective Lumen Output: 1380 lumens
Current Draw: 1.76A @ 12V / 0.88A @ 24V
Low Beam:
LED Chip: 2 x 15W OSRAM
Effective Lumen Output: 1008 lumens
Current Draw: 1.48A @ 12V / 0.74A @ 24V
